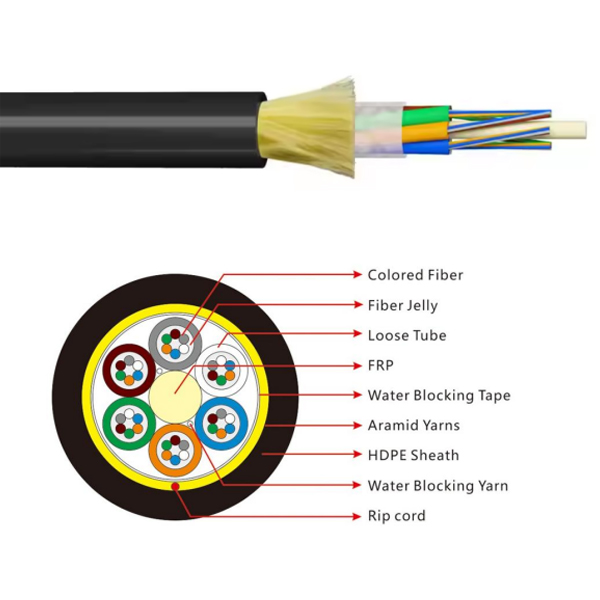

ADSS cable is loose tube stranded. 200um or 250um fiber is positioned into a loose tube which made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. The gap of the cable core is filled with a water-blocking yarn and a water-blocking tape longitudinally wrapped by the cable core. After stranded layer of aramid yarns is applied as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

·Can be installed without shutting off the power

·Adopt AT performance, excellent dielectric performance

·Light weight and small diameter reducing the load caused by ice and wind and the load on towers

·Large span lengths and the largest span is over 1000m

·Good performance of tensile strength and temperature

·The design life span is 30 years

·The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines 10kv and 35kv, PE outer sheath is applied.

·For power lines 110kV and 220KV, AT outer sheath is applied.

·The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.

·ADSS cable complies with Standard IEEEP1222 as well as IEC 60794-1.
